000. Part No.
130098010. Product Name
DiaSafe-Line-System "Multi"
020. Short Description
Safety-line fall protection system with multiple anchor points.

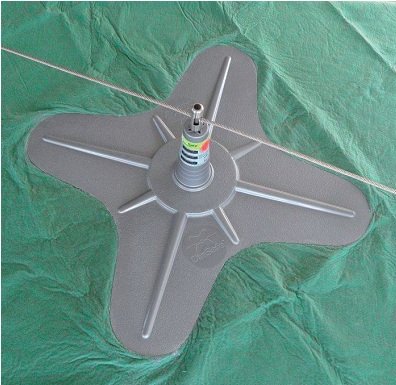

040. Typical Photo
[download]
070. Product Description
The DiaSafe systems are safety-line fall protection systems which ensure the safety of staff working at heights, without penetrating the roofing or requiring structural attachments. The DiaSafe system can be installed on roofs with up to a 5° slope, and the fall protection system uses rock ballast or the greenroof system (minimum 16.5 lbs/sf) to secure each anchor point. The system has been tested by TÜV, Europe’s leading safety validation organisation, and DiaSafe functions in both fall restraint and fall arrest scenarios. DiaSafe conforms to the most recent standard, EN 795:2012, when used with personal protection equipment that meets standards EN 355 and EN 365.
080. Application

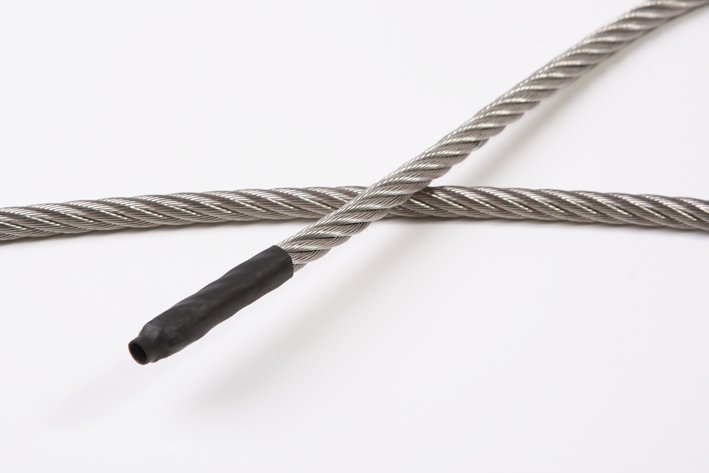

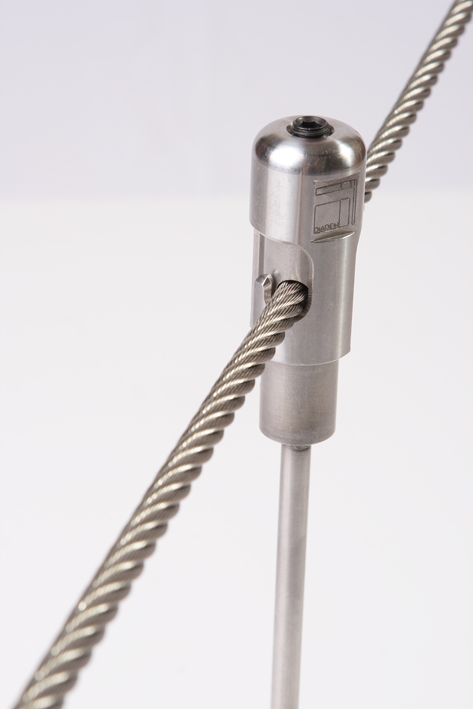

When using DiaSafe-Line-System "Multi", the carabiner of the lanyard is always connected to the steel cable - never directly to the post - allowing freedom of movement for users as the carabiner may move freely between posts without disconnecting and reconnecting the lanyard. This system is able to protect the safety of multiple users at a time, as long as only one person is attached to every second section (one section between two users must be left unused).
090. Frequently Asked Questions
- Is it necessary to have a certified contractor install the system?
- Is it necessary to fix the system to the roof structure?
- Can the system be used again after a fall incident?
- What kind of materials are used to ballast the system?
100. Benefits
- Elimination of Thermal Bridging
- Ballasted Method - the system is fixed without penetrating the roof.
- Corrosion Resistant - It can be installed in coastal regions or in industrial areas
- Multi-user system - This system accommodates multiple users simultaneously
- Low load requirements - from 16.5 lbs ballast weight per square feet

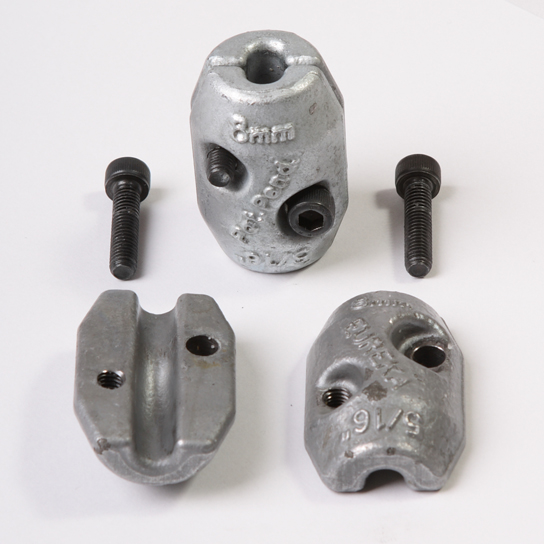

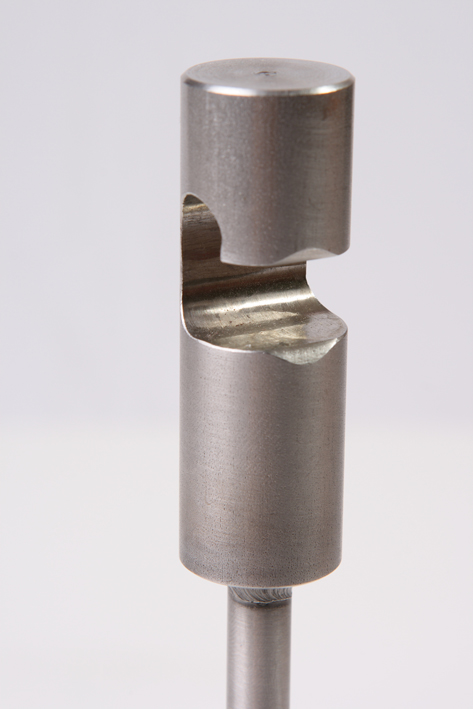

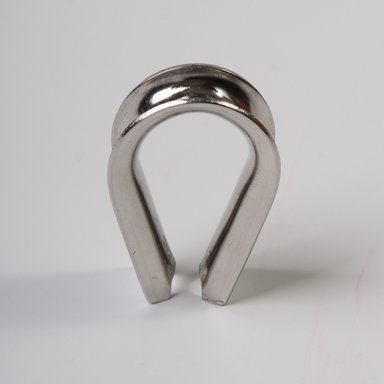

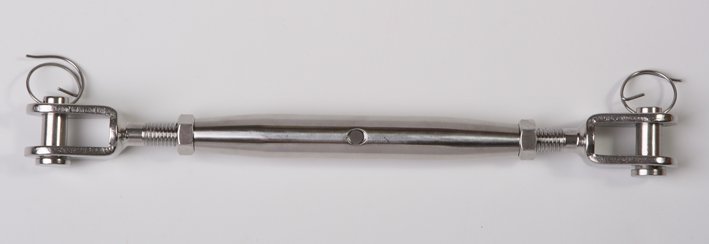

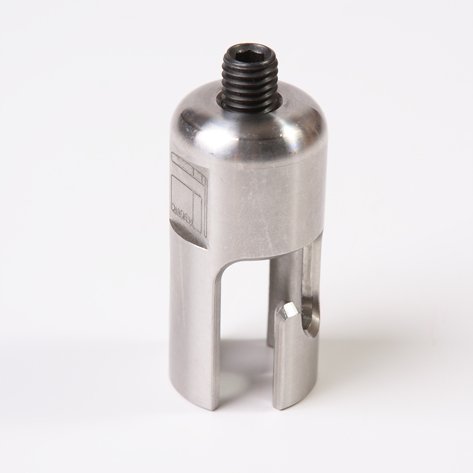

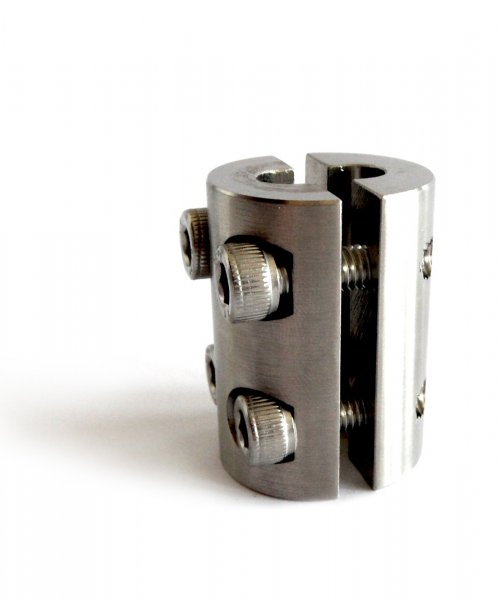

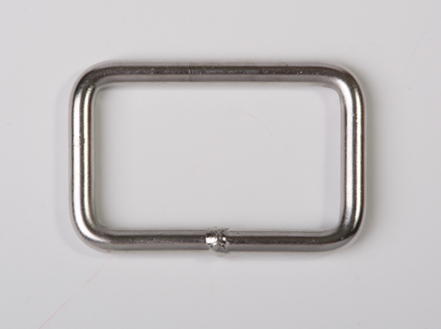

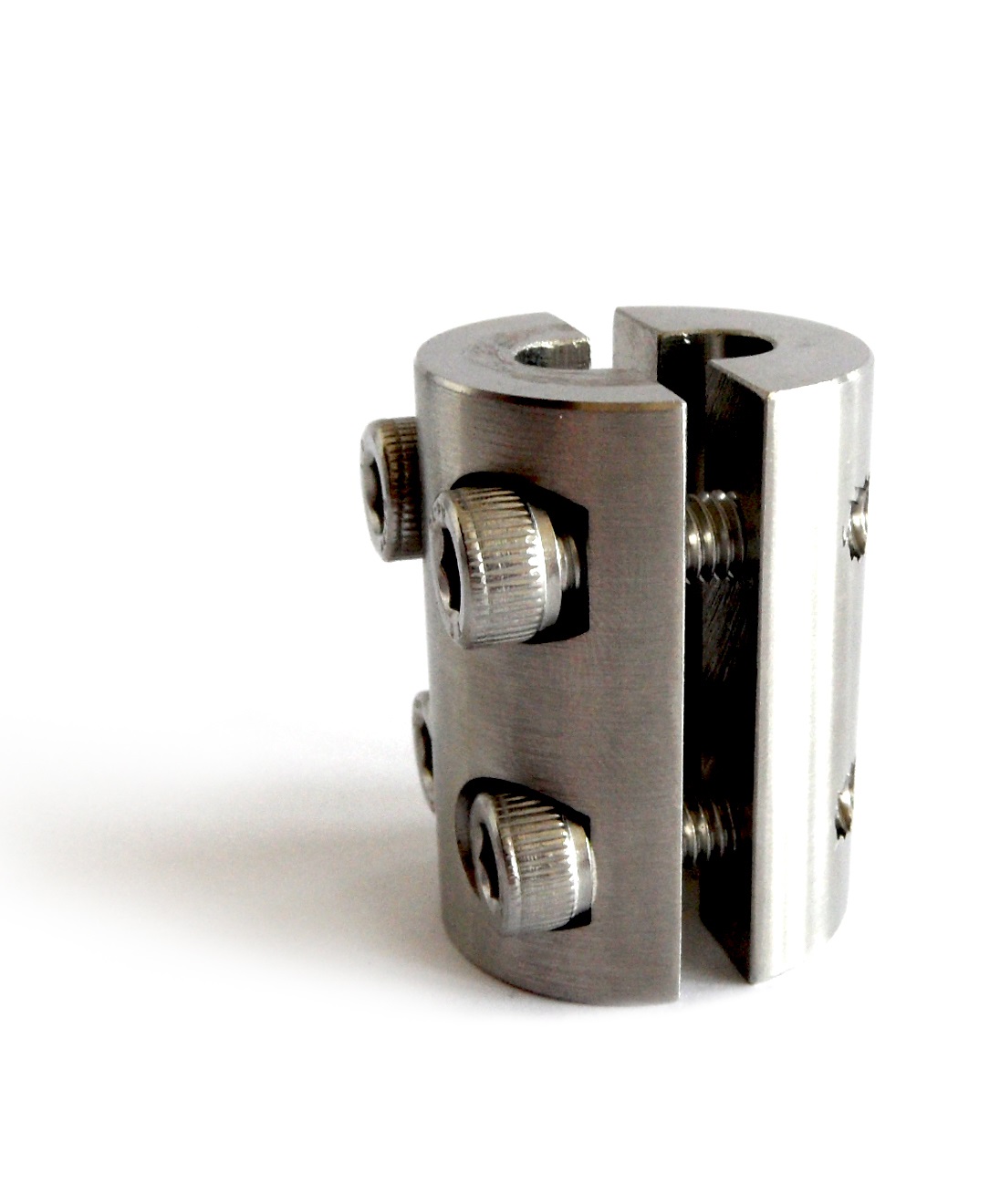

110. Accessories
